Gigabyte Z790 AORUS ELITE AX Motherboard

Gigabyte



  • Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors
  • DDR5 Compatible: 4*SMD DIMMs with XMP 3.0 Memory Module Support
  • Commanding Power Design: Twin 16+1+2 Phases Digital VRM Solution with 70A Power Stage
  • Cutting-Edge Thermal Design: M.2 Thermal Guard III, Fully Covered MOSFET Heatsinks, PCIe Ultra Durable Armor, 6-Layer PCB

28,300 36,500

Buy Now
Weight3 kg
Brand

Warranty

Platform

Supported Memory Type

BrandGIGABYTE
ModelZ790 AORUS ELITE AX
Supported CPU
CPU Socket Type LGA 1700
CPU TypeSupports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors
Chipsets
Chipset Intel Z790
Memory
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupport for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules

Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory Supported128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 5.0 x161 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
PCI Express 4.0 x162 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
Storage Devices
SATA 6Gb/s 6 x SATA 6Gb/s
M.2CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
SATA RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Onboard Audio
Audio Chipset Realtek Audio CODEC
High Definition Audio
Audio Channels 7.1 Channels
Onboard LAN
LAN ChipsetRealtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 6E AX211
– WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
– Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
BluetoothBluetooth 5.3

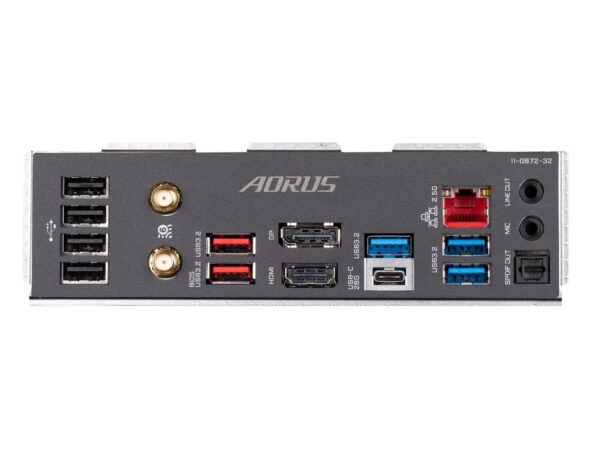

Rear Panel Ports
Back I/O Ports1 x USB Type-C port, with USB 3.2 Gen 2×2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x HDMI 2.0 port
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
Internal I/O Connectors
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x Q-Flash Plus button
1 x Clear CMOS button
1 x reset jumper
1 x Clear CMOS jumper
Physical Spec
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0″ x 9.6″
Power Pin1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Windows Compatibility
Windows 11Supported
Features
FeaturesBIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
