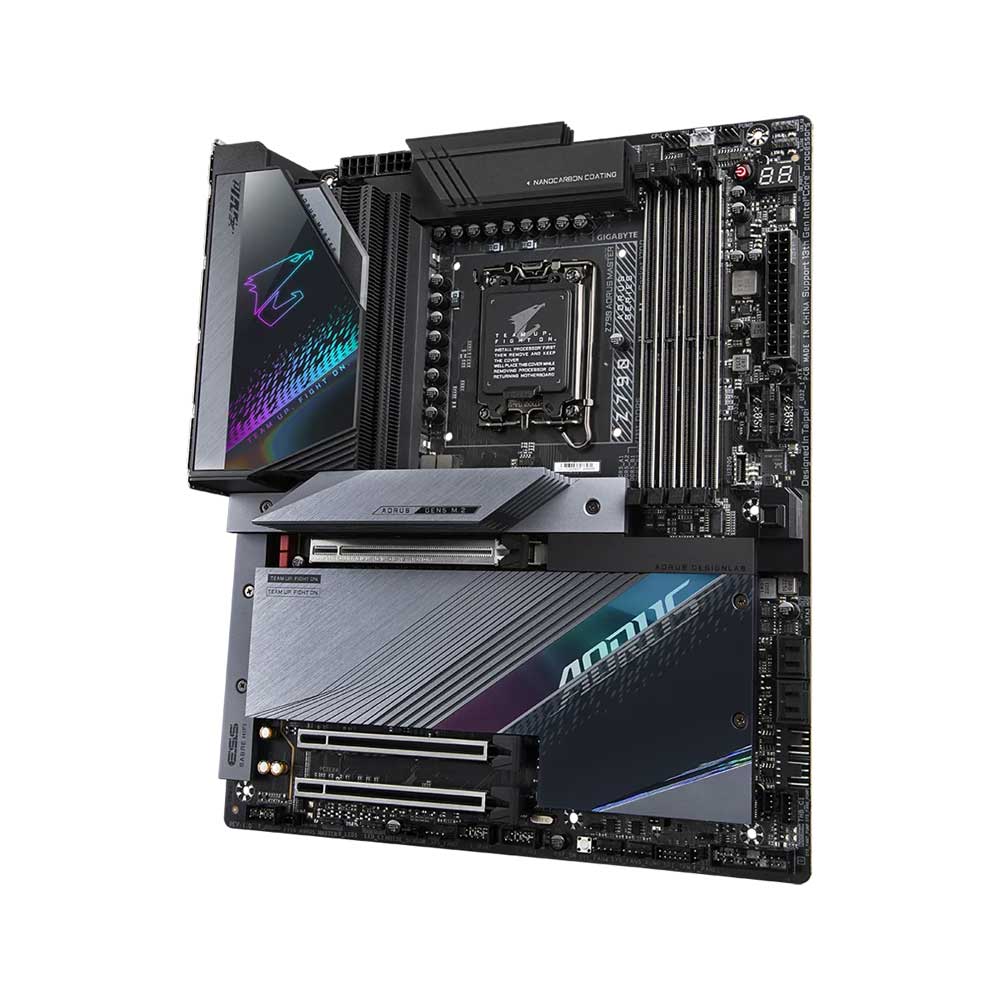

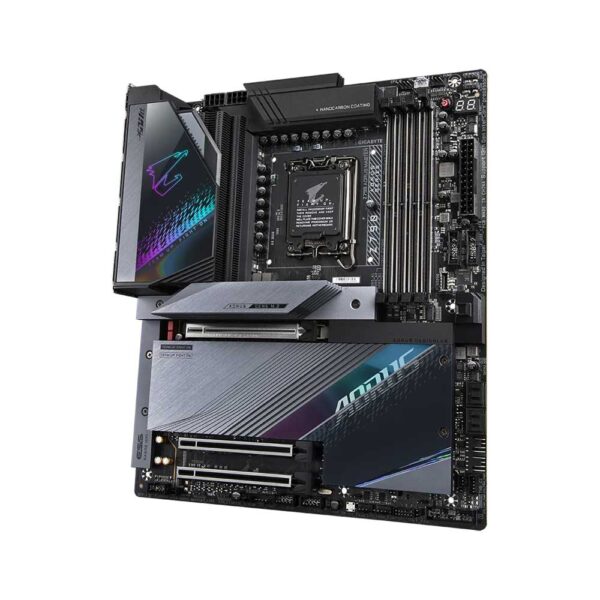

Gigabyte Z790 Aorus Master Motherboard

Gigabyte



  • Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors
  • Unparalleled Performance:Direct 20+1+2 Phases Digital VRM Solution
  • Dual Channel DDR5:4*SMD DIMMs with XMP 3.0 Memory Module Support
  • Next Generation Storage:1*PCIe 5.0 x4 and 4*PCIe 4.0 x4 M.2 Connectors
  • Fins-Array III & M.2 Thermal Guard III:To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance

51,000 59,700

Buy Now
Weight3 kg
Brand

Warranty

Platform

Supported Memory Type

CPULGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU
ChipsetIntel® Z790 Express Chipset
MemorySupport for DDR5 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096×[email protected] Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
AudioRealtek® ALC1220-VB CODEC
* The front panel line out jack supports DSD audio.
ESS ES9118 DAC chip
Support for DTS:X® Ultra
High Definition Audio
2/4/5.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LANMarvell® AQtion AQC113C 10GbE LAN chip
(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication ModuleIntel® Wi-Fi 6E AX411
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
Expansion SlotsCPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
Storage InterfaceCPU:
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
USBChipset:
3 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (2 ports on the back panel, 1 port available through the internal USB header)
Chipset+2 USB 3.2 Gen 2 Hubs:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
7 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+2 USB 3.2 Gen 1 Hubs:
8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
4 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
Voltage Measurement Points
Back Panel Connector1 x Q-Flash Plus button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x USB Type-C® port, with USB 3.2 Gen 1 support
2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support
7 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
I/O ControlleriTE® I/O Controller Chip
H/W MonitoringVoltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detection
BIOS1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique FeaturesSupport for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled SoftwareNorton® Internet Security (OEM version)
LAN bandwidth management software
Operating SystemSupport for Windows 11 64-bit
Support for Windows 10 64-bit
Form FactorE-ATX Form Factor; 30.5cm x 26.0cm
